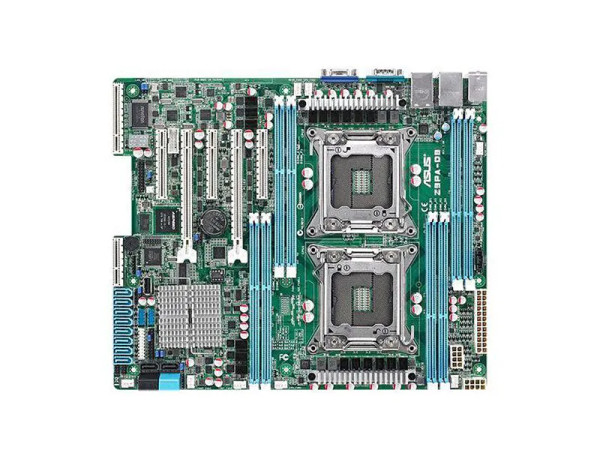

Optimise your server infrastructure with the Asus Z9PA-D8 ATX system board, engineered to deliver robust performance for your most demanding business applications. This high-reliability motherboard provides a powerful foundation for data centres and professional workstations, offering the scalability required for intensive computing tasks.
At sasconnects.com, we provide IT professionals and businesses with high-quality hardware at competitive pricing. This motherboard is available to order for dispatch in 2-4 business days with tracked UK and international delivery. Whether you are upgrading a workstation or building a new server, the Asus Z9PA-D8 offers the stability and processing power necessary for critical operations.
| Brand | ASUS |
| SKU | Z9PA-D8 |
| Brand | ASUS |
| Weight | 8.00 LBS |
| Form Factor | ATX |
| CPU Socket Type | LGA 2011 |
| Supported CPU(s) | Intel Xeon Processor |
| Supported CPU Technologies | 64-bit, Hyper-Threading Technology, Intel Turbo Boost Technology, Intel Virtualization Technology |
| Chipset | Intel C602 |
| Number of Memory Slot(s) | 8 |
| Number of Memory Channel(s) | 4 |
| Supported Memory Standard(s) | PC3-10600 (DDR3-1333), PC3-12800 (DDR3-1600), PC3-14900 (DDR3-1866), PC3-8500 (DDR3-1066) |
| Maximum Installed Memory | 256GB RDIMM GB |
| Expansion Slots | PCI-E x16, PCI-E x8 |
| Expansion Slots Details | PCI-E x8 (Gen2 X4 Link), PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 4 is occupied, PCI-E x8 (Gen3 X8 Link), PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 6 is occupied, PCI-E x8 (Gen3 X8 Link), MIO supported, PIKE Slot for |
| Storage Controller | SAS 6.0 Gbps, SATA 3.0 Gbps, SATA 6.0 Gbps |
| Storage Controller Details | SATA Controller, 4 x SATA2 3Gb/s ports, 2 x SATA3 6Gb/s ports, , SAS Controller, ASUS PIKE 2008 8-port SAS2 6G RAID card (Optional), ASUS PIKE 2008/IMR 8-port SAS2 6G RAID card(Optional), ASUS PIKE 2108-32PD 8-port SAS2 6G RAID card (Optional), ASUS |
| On-Board Video Controller | ASPEED AST2300 |
| Shared Video Memory | 16 MB |
| Network | MGMT Port |
| Connectors/Ports | 24-pin ATX Power Connector, 8-pin 12V Power Connector, CPU Fan Connector, PS/2, PS/2 Keyboard, PS/2 Mouse, RJ-45, Serial, USB, USB 2.0, USB 3.1 |
| Connectors/Ports Details | On Board I/O Connectors, 1 x TPM header, 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)*3, 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector)*4, 1 x USB connector |
